Application and price of Dth Hammer 6″ QL60 in South Africa
1、 Product Overview and Applications

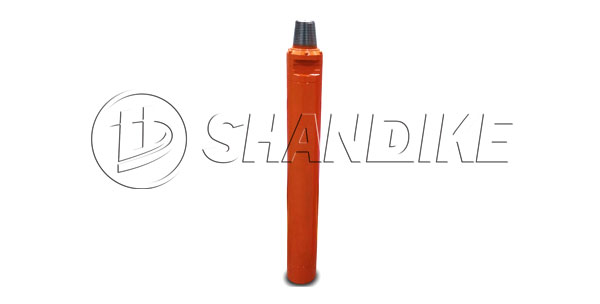

The 6 “QL60 DTH (Down The Hole) Hammer is a downhole impact hammer designed specifically for mining and water well drilling in South Africa and other regions. With its advanced technology and high-quality materials, the hammer exhibits excellent durability and performance, suitable for rock formations of various hardness, and can efficiently break rocks, significantly improving drilling efficiency.
The 6.5” HP QL60 Hammer is a Rock Hog Drilling Products Brand 6” Class QL60 Shank Hammer. The 6.5” HP QL60 Hammer is a Model-65 Hi-Performance, Heavy duty model for QL6 shank bit. The drill pipe connection-3-1/2 REG API pin up type configuration.
This hammer has an OD of 5.90” (150mm) and discard OD size is 5.43”(135.6mm). This hammer has slightly larger internals than the RH61QHD1HP. This allows for faster penetration rates.
In South Africa, this DTH Hammer is widely used in the following scenarios:
Mining: As a globally renowned mineral rich country, QL60 DTH Hammer plays a crucial role in the mining process in South Africa, used to break rocks and improve the overall efficiency of mining operations.
Water well drilling: In some areas of South Africa where water resources are scarce, water well drilling has become an important means of obtaining groundwater resources. QL60 DTH Hammer can quickly penetrate rock layers and achieve ideal drilling depths, providing stable water resources for local residents.
Geological exploration: QL60 DTH Hammer also plays an indispensable role in geological exploration work in South Africa, used to obtain underground rock samples and provide valuable data support for geological research.
2、 Product Features
Efficient drilling: QL60 DTH Hammer has won wide acclaim in drilling operations in South Africa for its powerful impact and efficient drilling speed.
Strong durability: Made of high-quality stainless steel and other high-strength materials, QL60 DTH Hammer still performs well in the harsh drilling environment of South Africa, extending the product’s service life.
Wide applicability: QL60 DTH Hammer is not only suitable for mining and water well drilling, but also widely used in various fields such as geological exploration, meeting the drilling needs of different customers in South Africa.
Easy to maintain: The reasonable design makes the QL60 DTH Hammer easy to disassemble and assemble, making it convenient for South African users to carry out daily maintenance and upkeep work.
3、 Price and purchasing advice
In South Africa, the price of QL60 DTH Hammer varies depending on factors such as supplier, order quantity, and delivery conditions. Generally speaking, the price range of these products is between hundreds and thousands of dollars. In order to obtain more favorable prices and reliable delivery guarantees, it is recommended that South African users follow the following advice when purchasing:
Choose a well-known supplier: When purchasing, choose a supplier with good reputation and strong technical strength to ensure product quality and after-sales service. In South Africa, some well-known drilling equipment suppliers may offer sales and services for QL60 DTH Hammer.
Understanding product specifications: Before purchasing, it is important to have a detailed understanding of the product’s specifications, performance, and usage conditions to ensure that the selected product meets actual needs. Especially pay attention to key parameters such as the outer diameter, discarded outer diameter, and internal components of the product.
Negotiating prices and delivery terms: When negotiating prices with suppliers, factors such as order quantity and delivery time should be fully considered to obtain more favorable prices and more reliable delivery guarantees. At the same time, it is also necessary to understand the supplier’s after-sales service policy to ensure timely technical support and maintenance services during use.
In summary, the 6 “QL60 DTH Hammer has broad application prospects in the fields of mining, water well drilling, and geological exploration in South Africa. South African users should choose well-known suppliers when purchasing, understand product specifications, and negotiate prices and delivery terms with suppliers to ensure the purchase of cost-effective products.
QL60 High Air Pressure DTH Hammer With Foot Valve Specification:
| Items | Replacement Parts |
| 1 | Top sub |
| 2 | O-ring of top sub |
| 3 | Breakout Ring |
| 4 | Check Valve |
| 5 | Spring |
| 6 | Compression Buffer |
| 7 | Air Distributor |
| 8 | Internal cylinder |
| 9 | Piston |
| 10 | External cylinder |
| 11 | Guide sleeve |
| 12 | O-ring of stop ring |
| 13 | Stop ring |
| 14 | Breakout ring |
| 15 | Drive chunk |
| 16 | Drill bit |
| Drilling Diameter(mm) | Hammer Length Without Bit(mm) | External Diameter(mm) | Weight Without Bit(kg) | ||||
| φ155-φ190 | 1212 | 142mm, 144mm,146mm, 148mm | 95 | ||||
| Working Pressure(Mpa) | Air Consumption(m³/min) | ||||||
| 1.5-2.5 Mpa | 1.0Mpa: 10 m³/min | 1.8Mpa: 20 m³/min | 2.4Mpa: 28.5 m³/min | ||||
| Impact rate at 17 bar | Recommended Rotation Speed | Connection Rod Thread | Bit Shank | ||||
| 23HZ | 20-30 r/min. | API 3 1/2” Reg | QL60 | ||||
