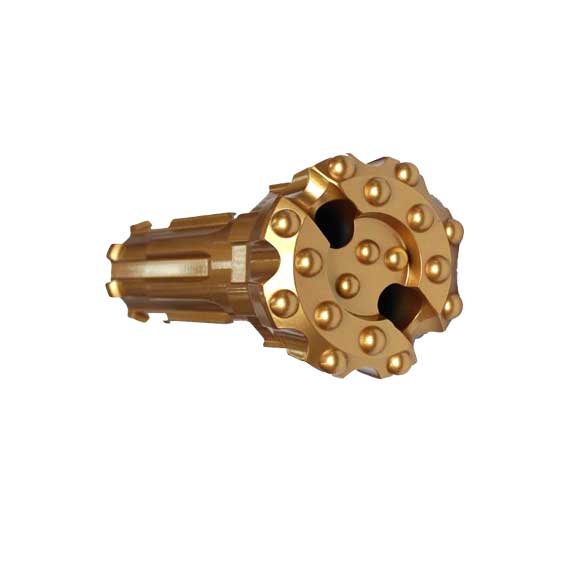

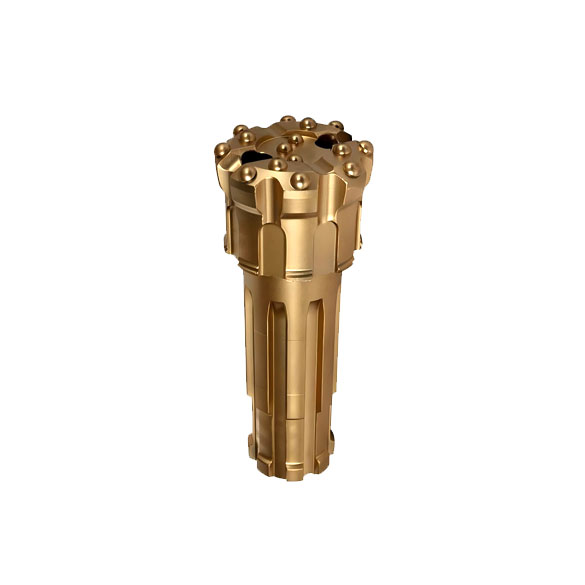

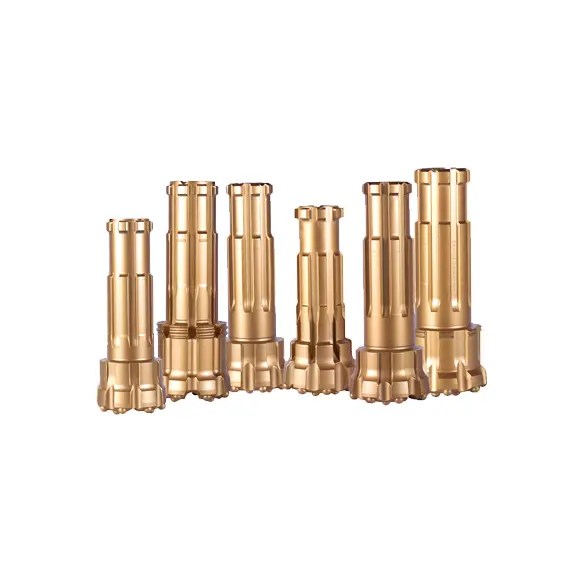

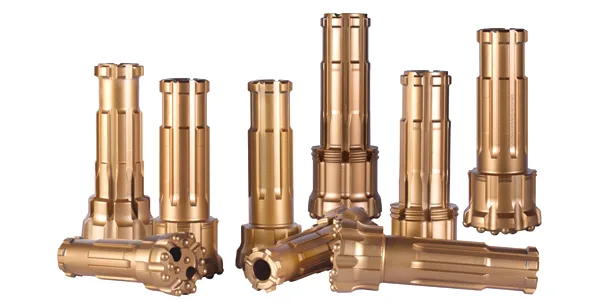

RC(reverse circulation) DTH Bit

The RC bits are the tool cutting rock. SHANDIKE RC DTH bits are made of superior quality alloy steel and T.C carbides.

  • Bit Size: 3'' ,3.5'',4'',5'',5.5'',6'',8'' ,10''
  • Impact Frequency: 1,200–2,400 blows per minute (BPM)
  • Material: High-strength steel body with tungsten carbide inserts.
  • Connection Type: Standard API or custom thread options (e.g., R32, COP, etc.)
  • Over 15 years experience in rock drilling TooLS industry.
  • Shandike only uses high-quality raw materials.
  • We set up our products standard matched with world leading brands.
  • Advanced processing equipment extends the service life of products.

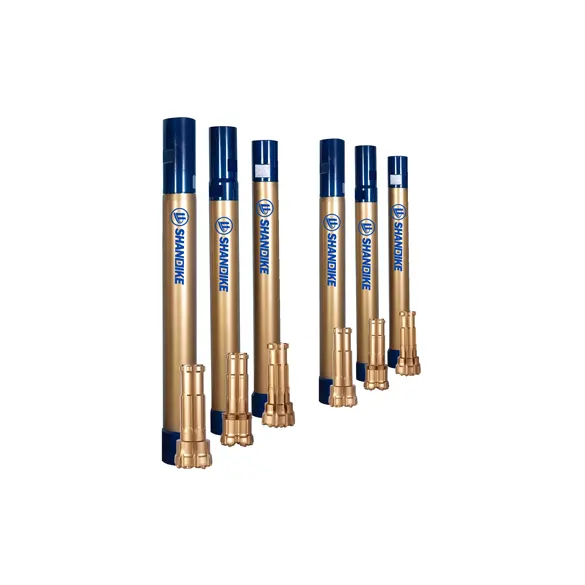

The Characteristics of RC hammer and bits

The RC bits are the tool cutting rock. SHANDIKE RC DTH bits are made of superior quality alloy steel and T.C carbides.

Advantages of the RC system

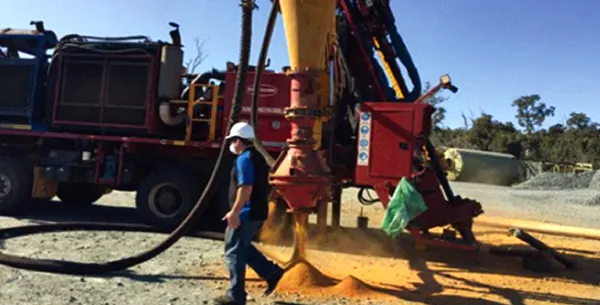

1. Reverse Circulation Technology
– Utilizes a unique air/fluid circulation system that transports cuttings upward through the center of the drill string, ensuring clean and uncontaminated samples.
– Minimizes hole deviation and improves drilling accuracy in fractured or unstable formations.

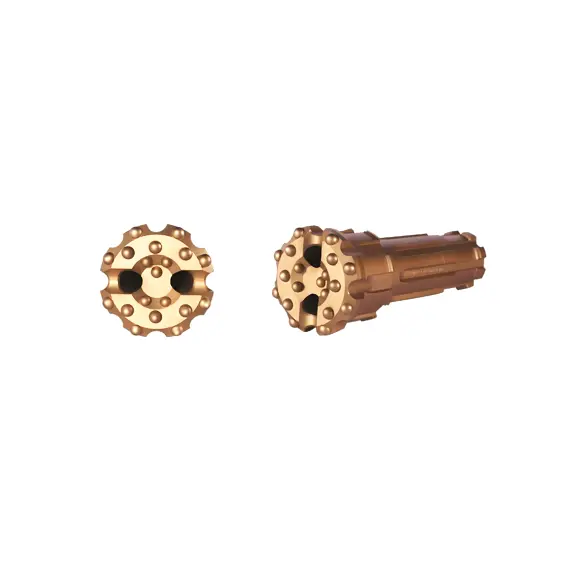

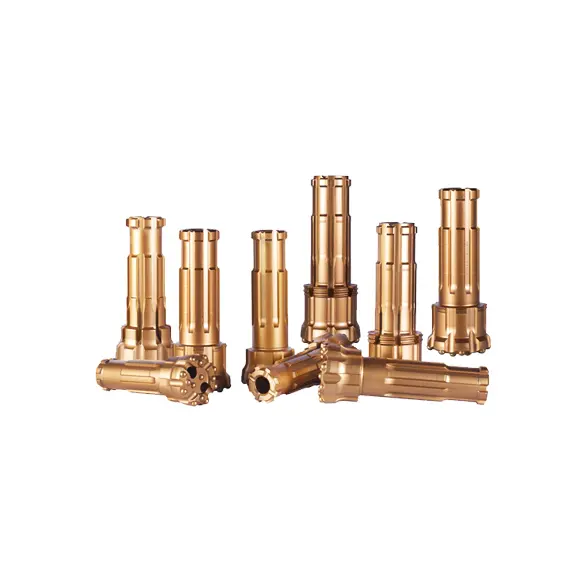

RC(reverse circulation) DTH Bit

2.High-Performance Design

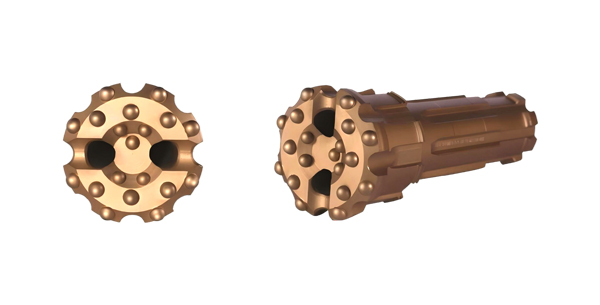

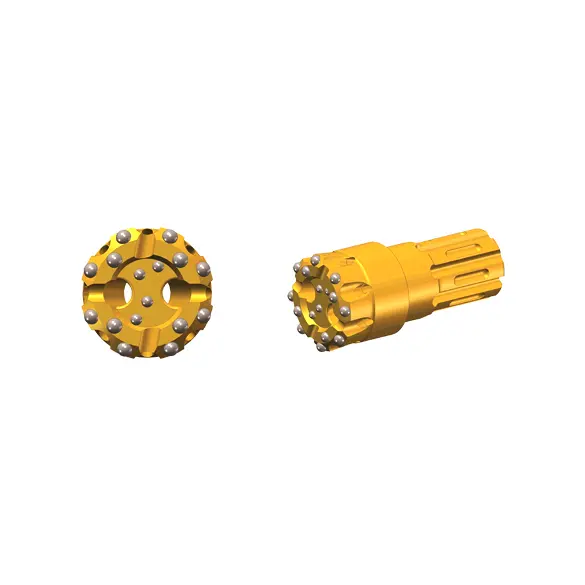

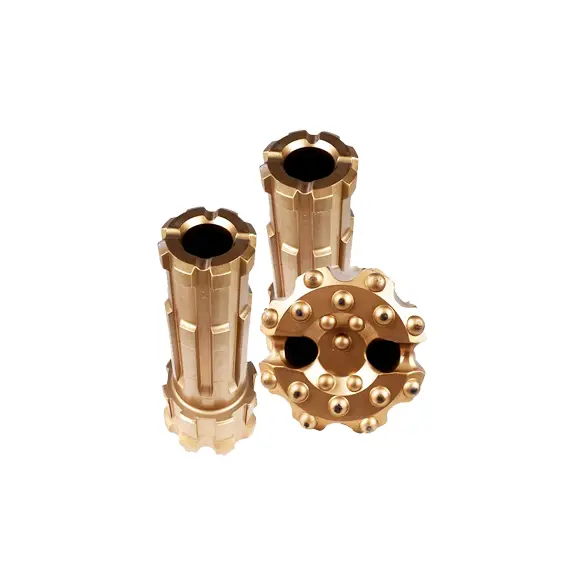

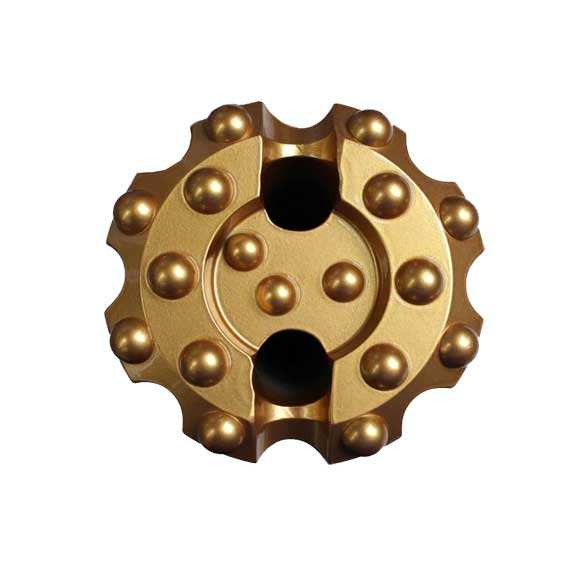

– Carbide Button Configuration: Strategically placed tungsten carbide buttons for maximum impact energy transfer and extended bit life.

– Optimized Flushing Channels: Ensures efficient removal of cuttings and reduces balling in sticky formations.

3. Durability & Adaptability

– Manufactured from premium-grade alloy steel with advanced heat treatment for exceptional wear and impact resistance.

– Compatible with a wide range of rock types, including hard, abrasive, and highly fractured formations.

4. Easy Maintenance

Modular design allows for quick replacement of worn components, reducing downtime and operational costs.

Technical Specifications
– Drill Bit Diameter: 90mm to 350mm (custom sizes available).
– Connection Type: Standard API or custom thread options (e.g., R32, COP, etc.).
– Operating Pressure: 15–30 bar.
– Impact Frequency: 1,200–2,400 blows per minute (BPM).
– Material: High-strength steel body with tungsten carbide inserts.

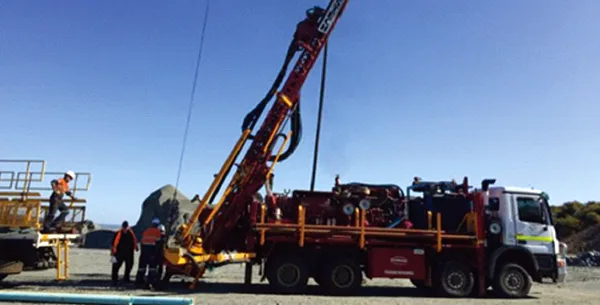

Applications
– Mineral Exploration: Achieves high-quality core samples for accurate resource evaluation.
– Water Well Drilling: Efficiently penetrates hard rock layers while maintaining borehole stability.
– Geotechnical Surveys: Ideal for soil and rock sampling in complex geological conditions.
– Blast Hole Drilling: Enhances productivity in quarrying and mining operations.

Advantages Over Conventional DTH Bits
✅ Higher Penetration Rates: Optimized energy transfer ensures faster drilling.
✅ Cleaner Samples: Reverse circulation minimizes contamination for precise analysis.
✅ Reduced Air Loss: Sealed design prevents air leakage, improving energy efficiency.
✅ Extended Service Life: Robust construction reduces wear in abrasive environments.

Why Choose Our RC DTH Bit?
– Custom Solutions: Tailored designs to meet specific project requirements.
– Global Certifications: Compliant with ISO 9001 and international drilling standards.
– Technical Support: 24/7 expert assistance for troubleshooting and optimization.

Applications

RC tools are used in geological exploration, water well drilling etc

Parameter:

Bit diameterNo.X Button diamater(mm)Air holeWeight (kg)Hammer type
mminchGaugeFront
11541/28×144×14+4×13210TH1080RC
12043/48×144×14+4×13210.5TH1162RC
12758×144×14+4×13211TH1186RC
13051/88×166×14+4×14211.5TH1214RC
13351/48×166×14+5×14215.6
13753/88×166×14+5×14216.0TH1261RC
14051/28×166×14+5×14218.8
14654/38×166×14+5×14219.5TH1305RC
15268×166×14+5×14221

Notice: There is a chance that SHANDIKE may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
