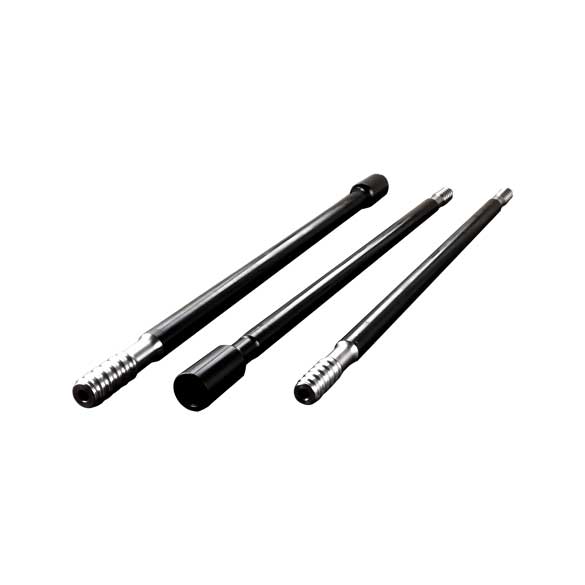

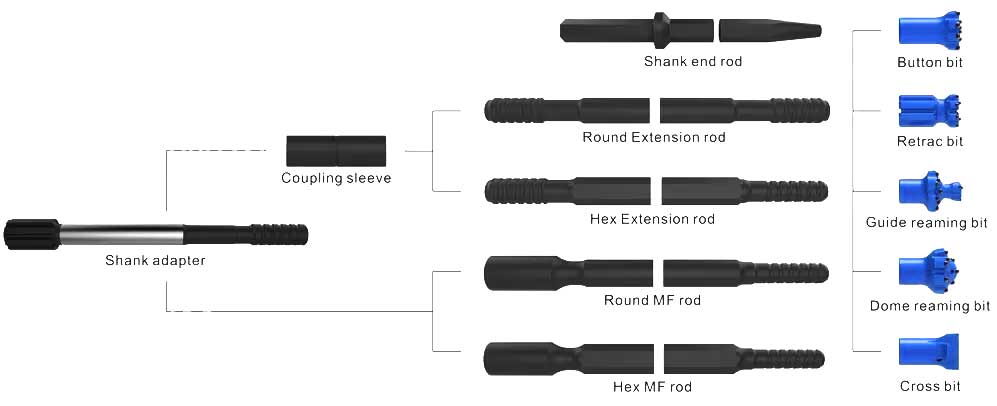

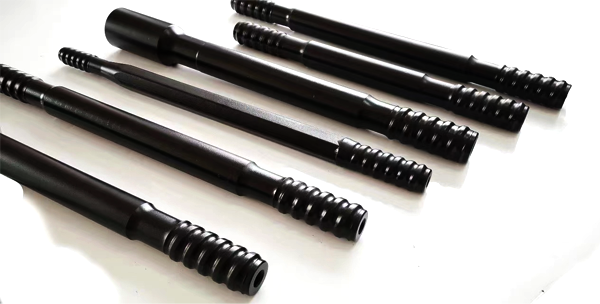

Threaded drill rods are also known as hydraulic drill rods and heavy-duty drill rods, which connect with shank adaptors, hydraulic drifters and drill bits to transfer impact power and rotation torque of hydraulic drifters onto drill bits for breaking rocks.
Thread size: R32, R38, T38, T45, T51.
Rod size: Round 32, Round 39, Round 46, Round 52.
Length: 600mm to 6059mm.
Slot for wrench: with or without
Over 15 years experience in rock drilling TooLS industry.
Shandike only uses high-quality raw materials.
We set up our products standard matched with world leading brands.
Advanced processing equipment extends the service life of products.
Made from the same steels as Sandvik, produced by CNC machining and advanced heat treatment.

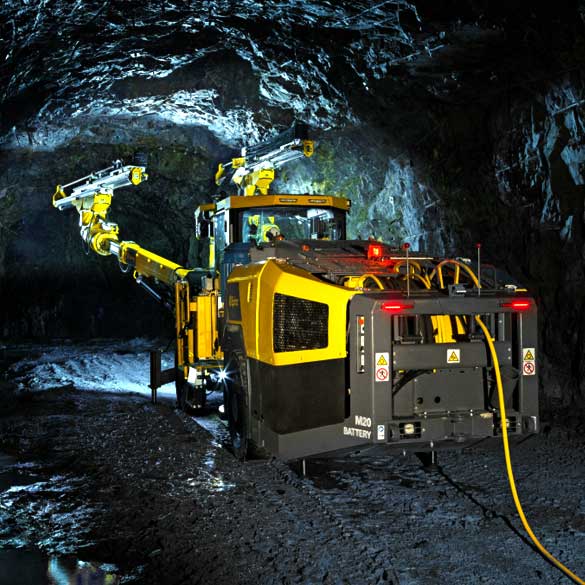

The threaded drill rods, working with hydraulic drill rigs and hydraulic jumbos, have main threads of R22，R25，R28，R32，TR35，T38，T45，T51，ST58，ST68 and T60.
Features
• Carburizing process is applied to promote surface hardness, thus grant better wearing quality and lifespan for the drill rods;
• 23CrNi3Mo, which is in same league as Sandvik Sandbar 64, is applied as drill rod material.
• Cost-effective, good performance with reasonable price.
• Complete types of drill rod for various drilling scenarios.
Applications

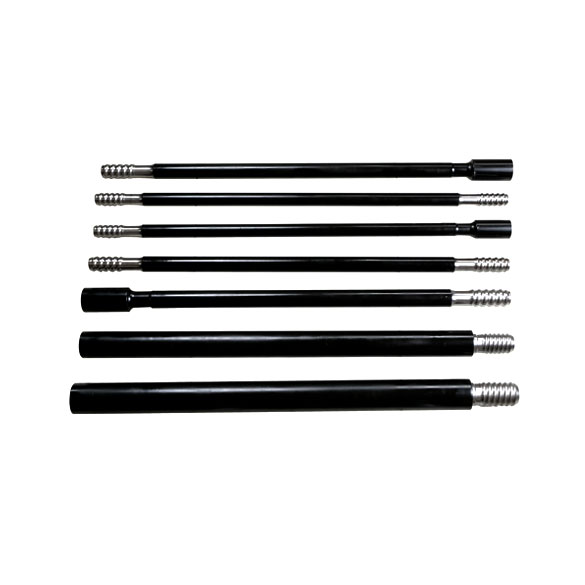

The threaded drill rods are divided into MF rods and extension rods, which are widely used in open-pit mining, underground mining, tunneling, anchoring, furnace tapping, tunnel construction, hydropower engineering, quarrying and construction.
SHANDIKE is the first Chinese factory to manufacture drill rods and ranks the forefront in the industry in China regarding quality, sales volume, export volume, specification varieties and matching capacity.
Specifications
Bench and Production Rods, Extension Rods, MF(Speed) Rods
Description
Length
Diameter
Weight
mm
feet
mm
inch
kg
Extension RodR32 – Round32 – R32
2435
8′
32
1 1/4”
14.20
3050
10′
32
1 1/4”
17.80
3660
12′
32
1 1/4”
21.30
MF (Speed) RodR32 – Round32 – R32
3050
10′
32
1 1/4”
17.90
3660
12′
32
1 1/4”
21.45
4270
14′
32
1 1/4”
25.10
Extension RodR38 – Round39 – R38
3050
10′
39
1 17/32”
25.50
3660
12′
39
1 17/32”
30.60
4270
14′
39
1 17/32”
35.40
MF (Speed) RodR38 – Round39 – R38
3050
10′
39
1 17/32”
26.50
3660
12′
39
1 17/32”
31.60
4270
14′
39
1 17/32”
36.40
Extansion RodT38 – Round39 – T38
3050
10′
39
1 17/32”
25.50
3660
12′
39
1 17/32”
30.60
4270
14′
39
1 17/32”
35.40
MF (Speed) RodT38 – Round39 – T38
3050
10′
39
1 17/32”
26.50
3660
12′
39
1 17/32”
31.60
4270
14′
39
1 17/32”
36.40
Extension RodT45 – Round46 – T45
3050
10′
46
1 3/4”
35.80
3660
12′
46
1 3/4”
43.00
4270
14′
46
1 3/4”
50.10
MF (Speed) RodT45 – Round46 – T45
3050
10′
46
1 3/4”
36.40
3660
12′
46
1 3/4”
43.70
4270
14′
46
1 3/4”
50.70
Extension RodT51 – Round52 – T51
3660
12′
52
2”
54.20
4270
14′
52
2”
63.50
MF (Speed) RodT51 – Round52 – T51
3660
12′
52
2”
55.70
4270
14′
52
2”
64.80
Extension RodR32 – Round32 – R32
915
3′
32
1 1/4”
5.50
1220
4′
32
1 1/4”
7.32
1525
5′
32
1 1/4”
9.18
1830
6′
32
1 1/4”
10.95
MF (Speed) RodR32 – Round32 – R32
915
3′
32
1 1/4”
5.45
1220
4′
32
1 1/4”
7.28
1525
5′
32
1 1/4”
9.10
1830
6′
32
1 1/4”
10.72
Extension RodT38 – Round39 – T38
1220
4′
39
1 17/32”
9.20
1525
5′
39
1 17/32”
10.25
1830
6′
39
1 17/32”
15.30
MF (Speed) RodT38 – Round39 – T38
1220
4′
39
1 17/32”
9.50
1525
5′
39
1 17/32”
11.25
1830
6′
39
1 17/32”
16.30
MF (Speed) RodT45 – Round46 – T45
1525
5′
46
1 3/4”
18.50
1830
6′
46
1 3/4”
22.20
MF (Speed) RodT51 – Round52 – T52
1525
5′
52
2”
17.85
1830
6′
52
2”
28.10
Please contact our sales team for more specifications.
